CyberHub Platform

# User Manual

Deployment Manual Version Compiled By Date
Video Surveillance User Manual V1.0.0 Wang Jiale 2022.11.11

  1. Create a New Page

    image-20221110081704284

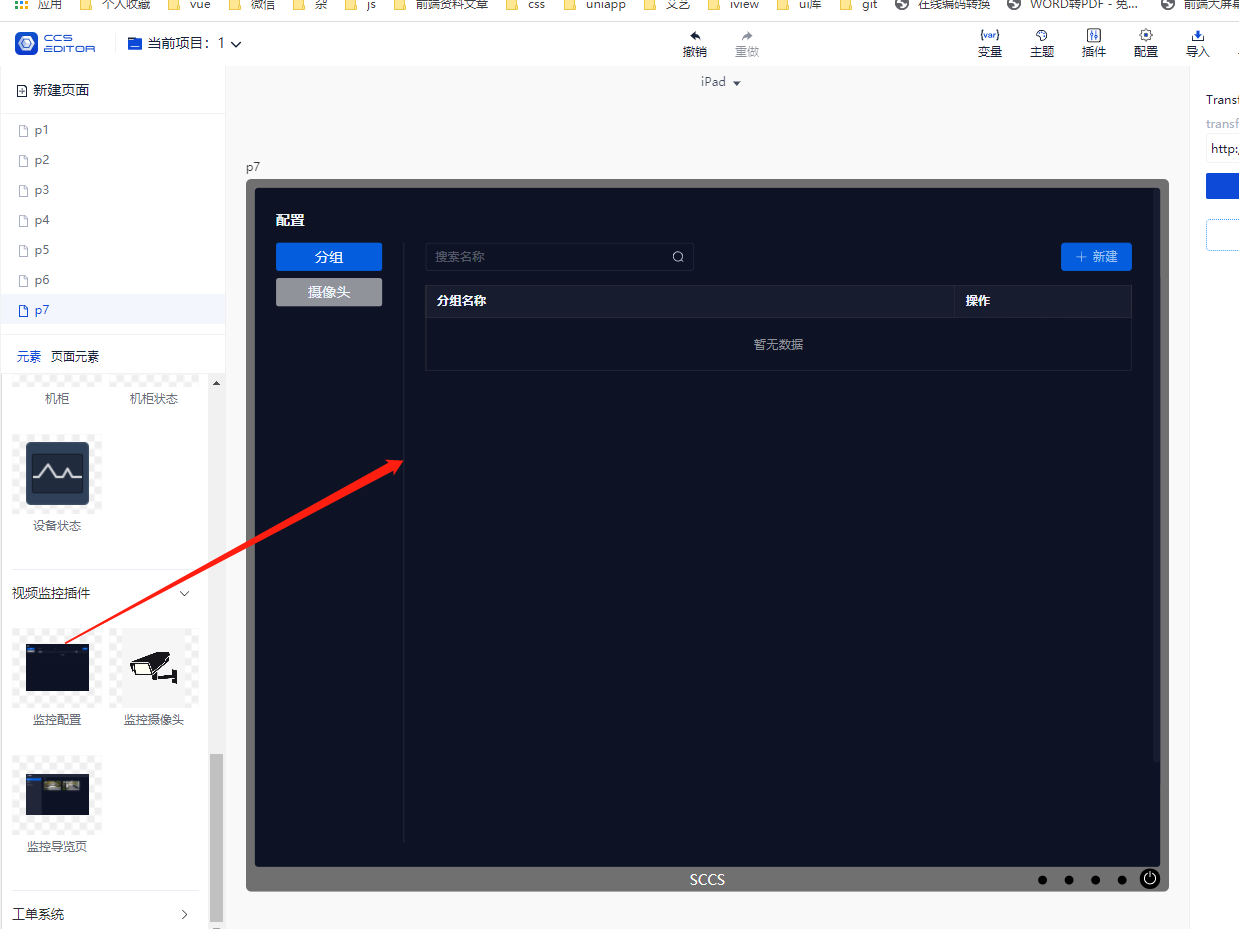

  2. Drag in the Surveillance Configuration Page

    image-20221110081800632

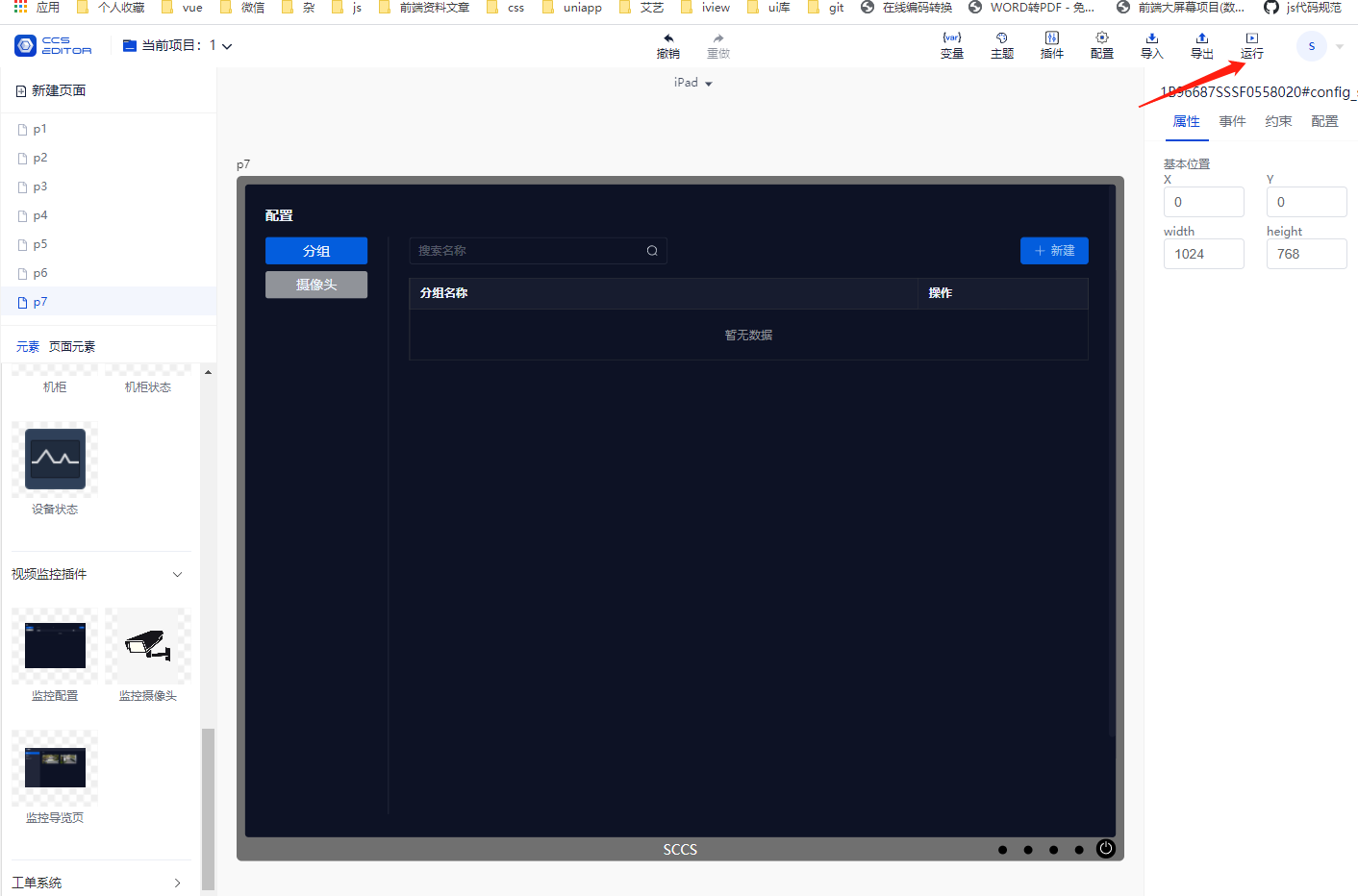

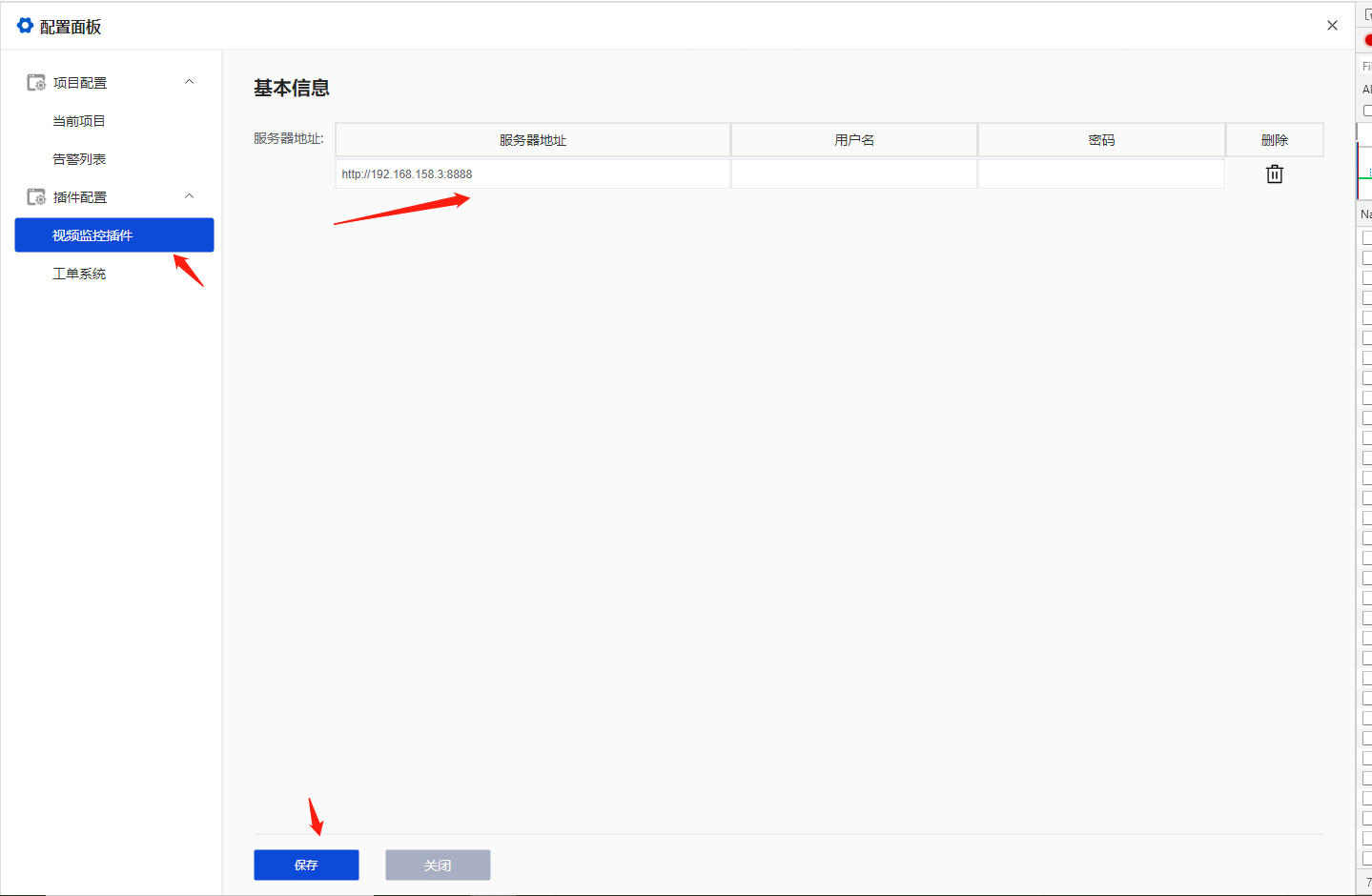

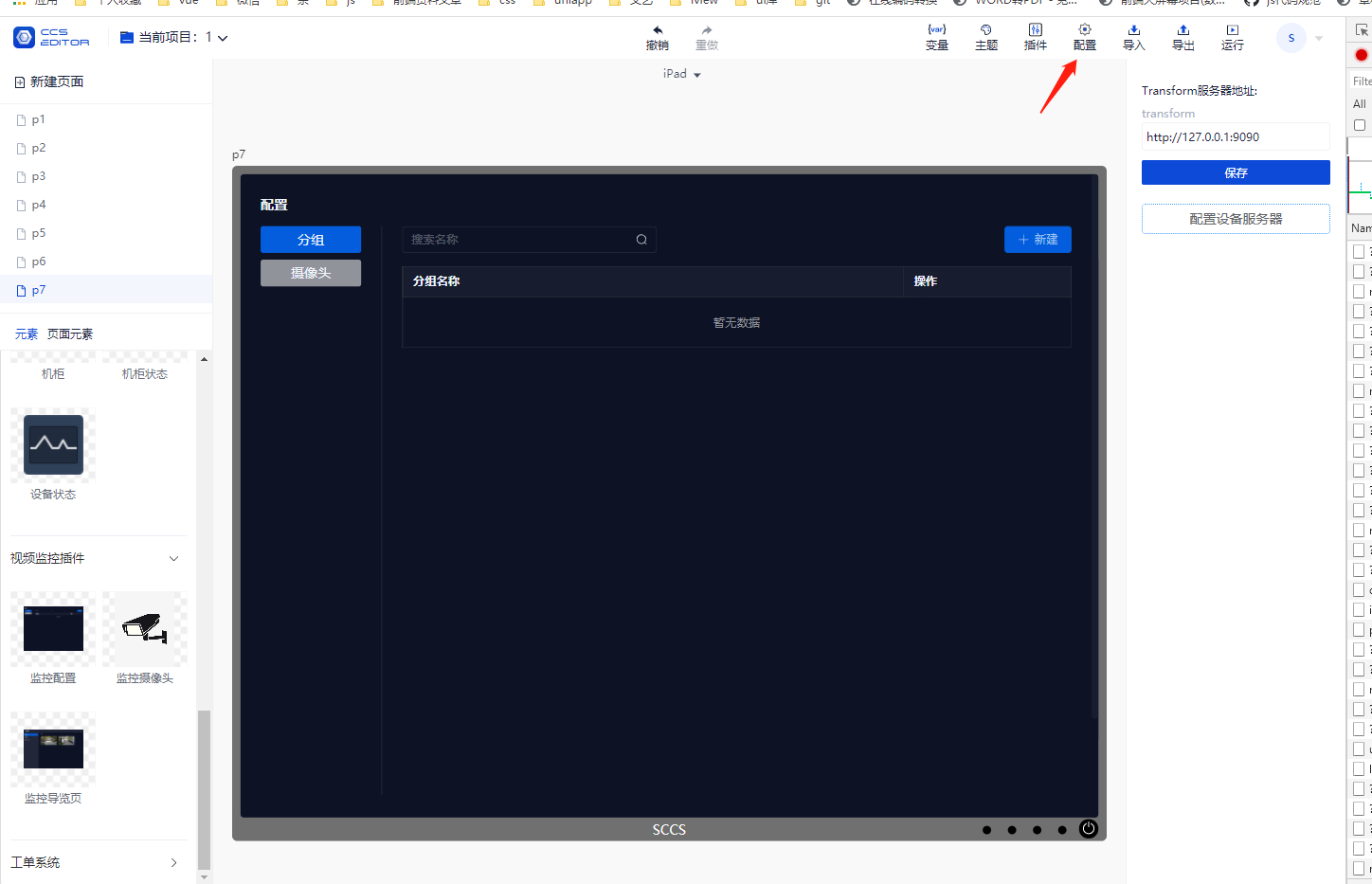

  3. Click on Configuration ---> Configure Server Address ---> Click Run

    image-20221110081834200

    image-20221110081856721

    image-20221110081944587

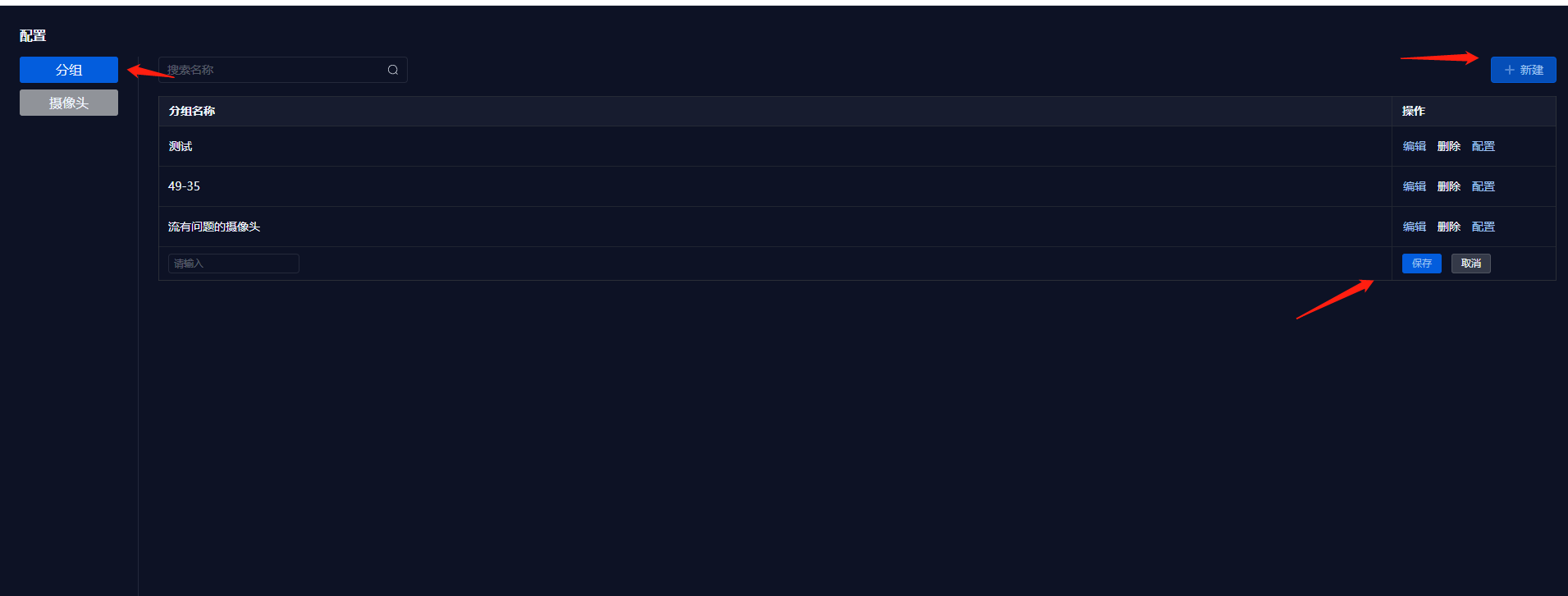

  4. Create a New Video Group

    image-20221110082034909

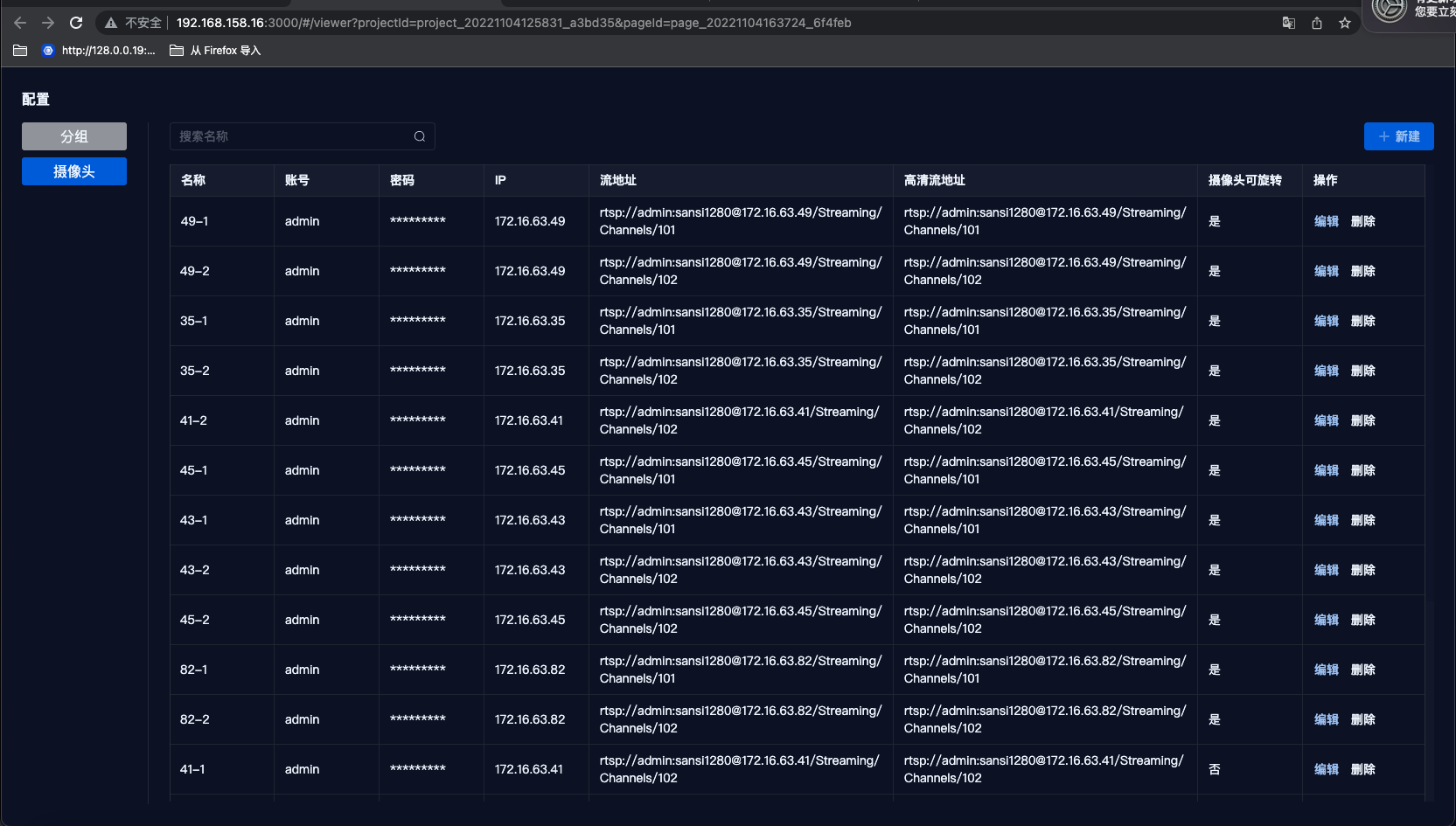

  5. Add a New Camera

Note: For stream addresses, use the lower resolution address for standard streams and the higher resolution address for HD streams.

image-20221110082104252

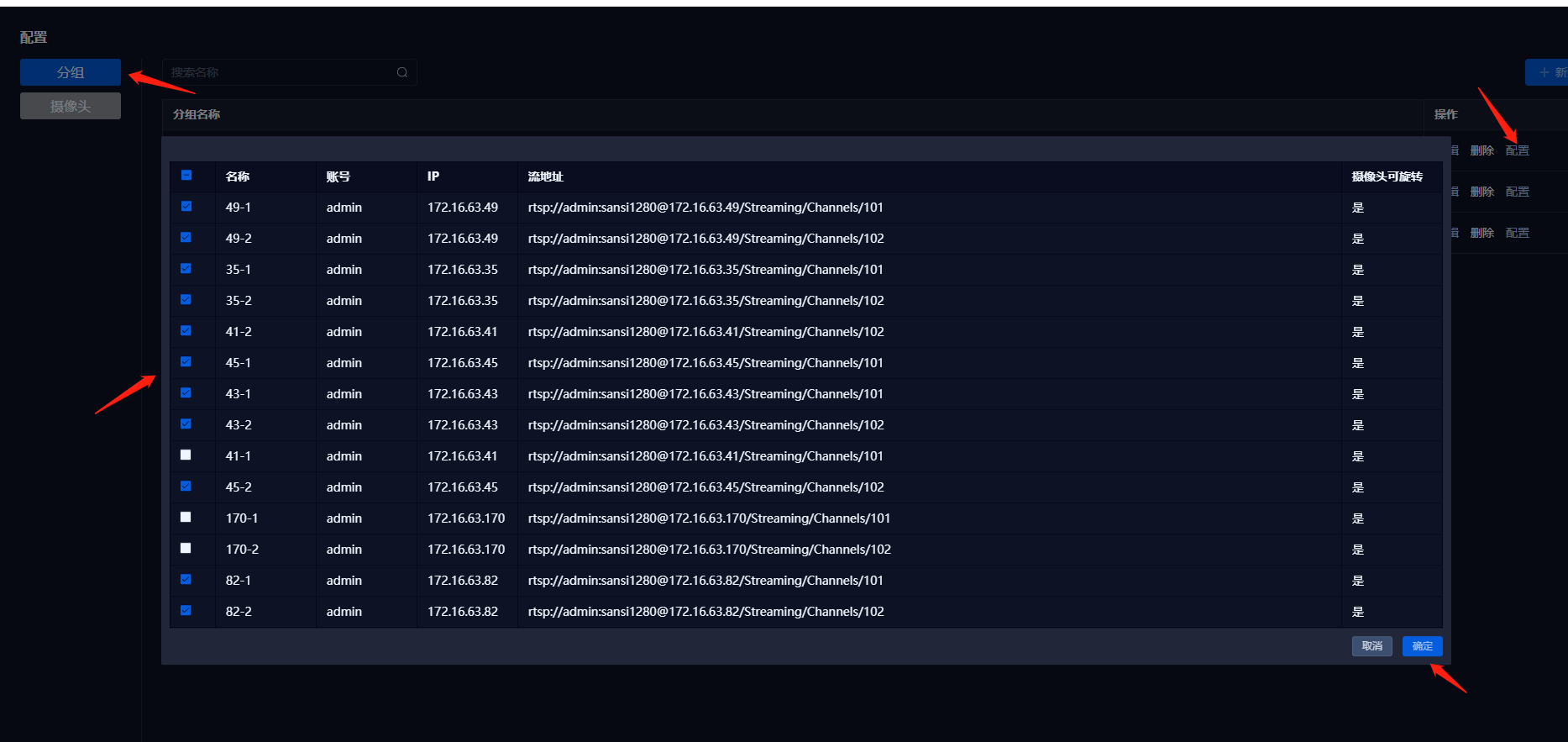

  1. Select the Group ---> Click Configure ---> Check the Camera ---> Confirm

    image-20221110082153893

  2. Bind Camera on a Separate Page

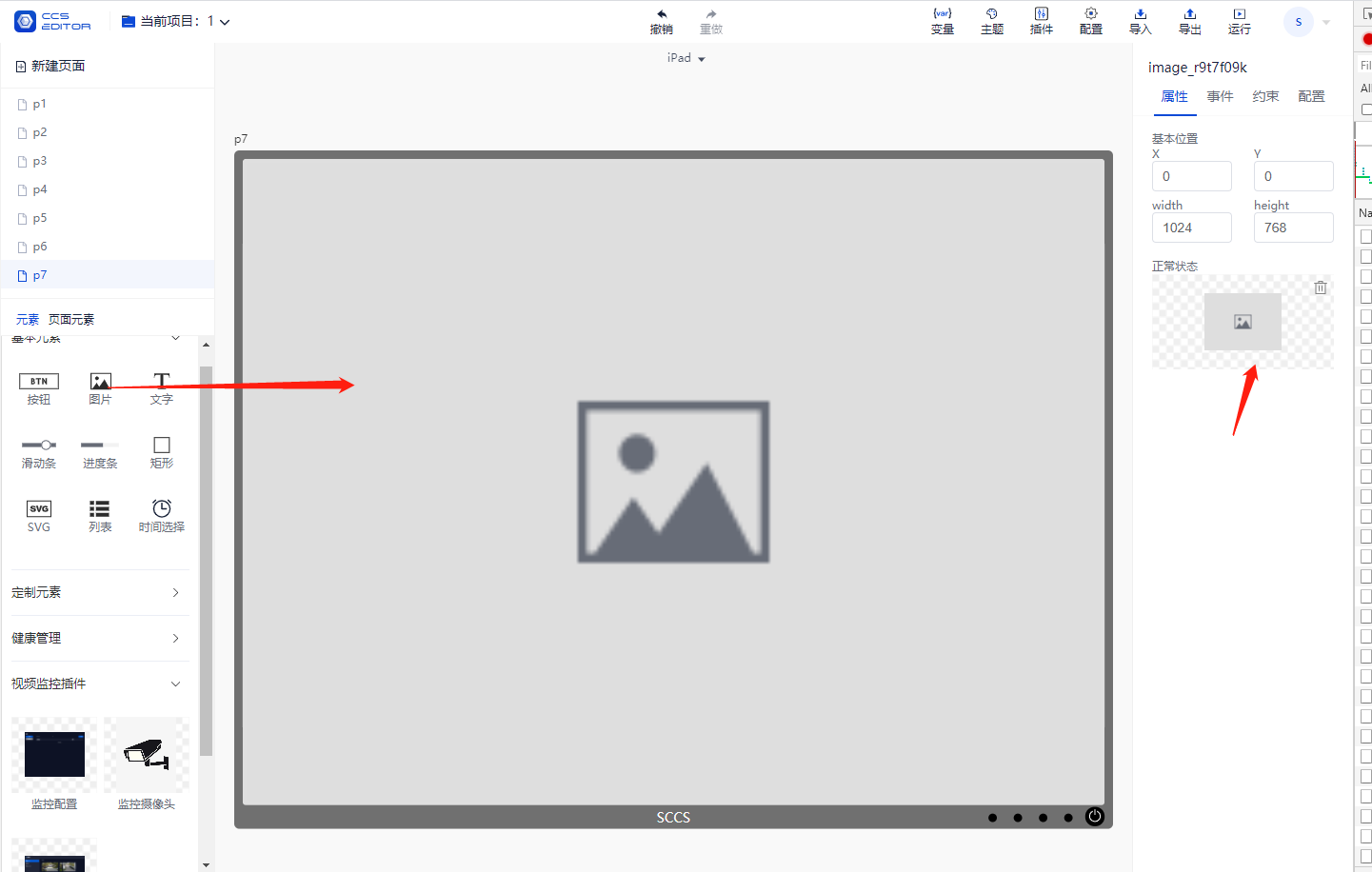

    First, select a background image and set the floor background;

    image-20221110082419051

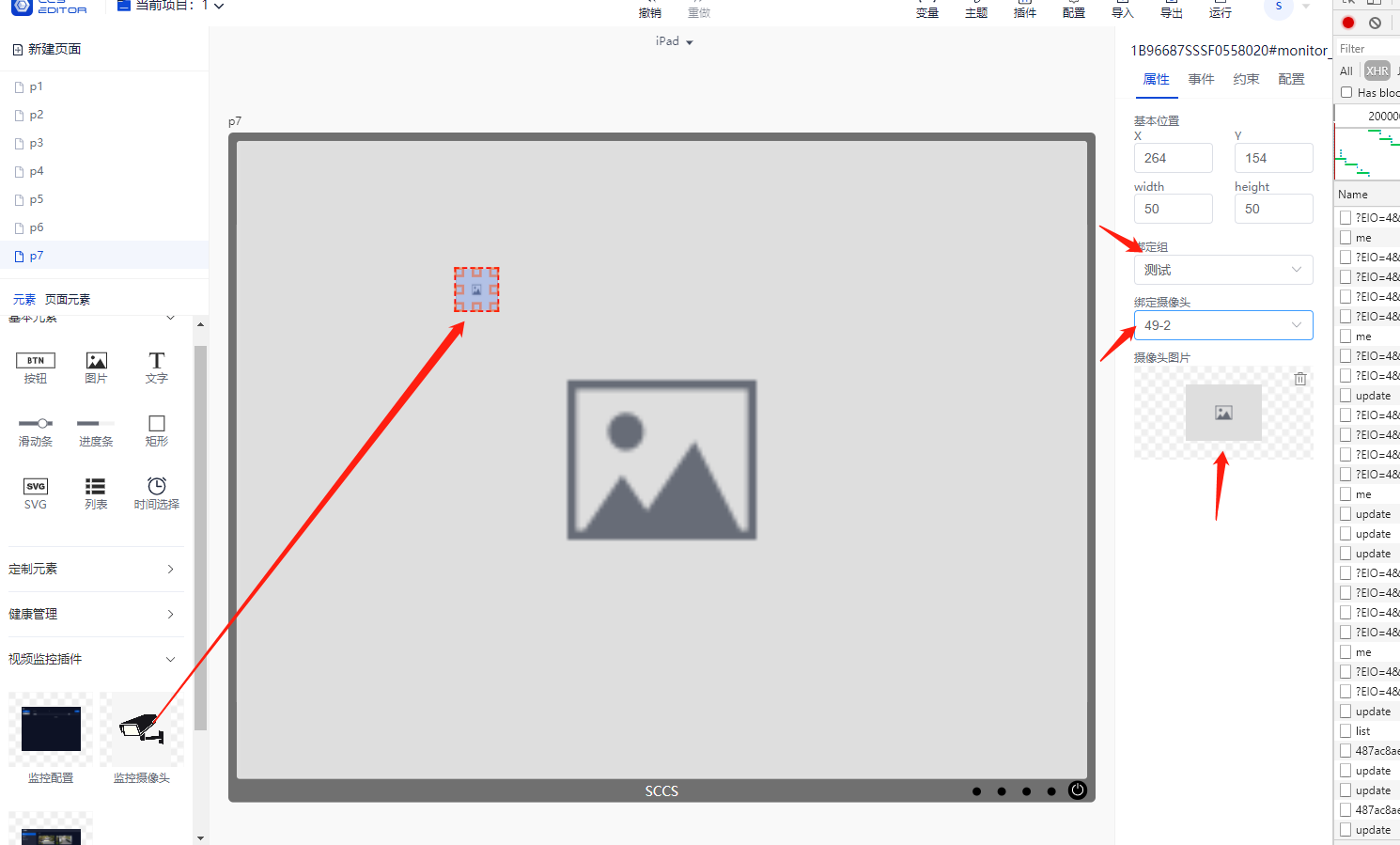

    Drag in the surveillance camera ---> Bind Group ---> Bind Camera ---> Bind Camera Image

    image-20221110082600115

    Click Run, then click on the camera to view.

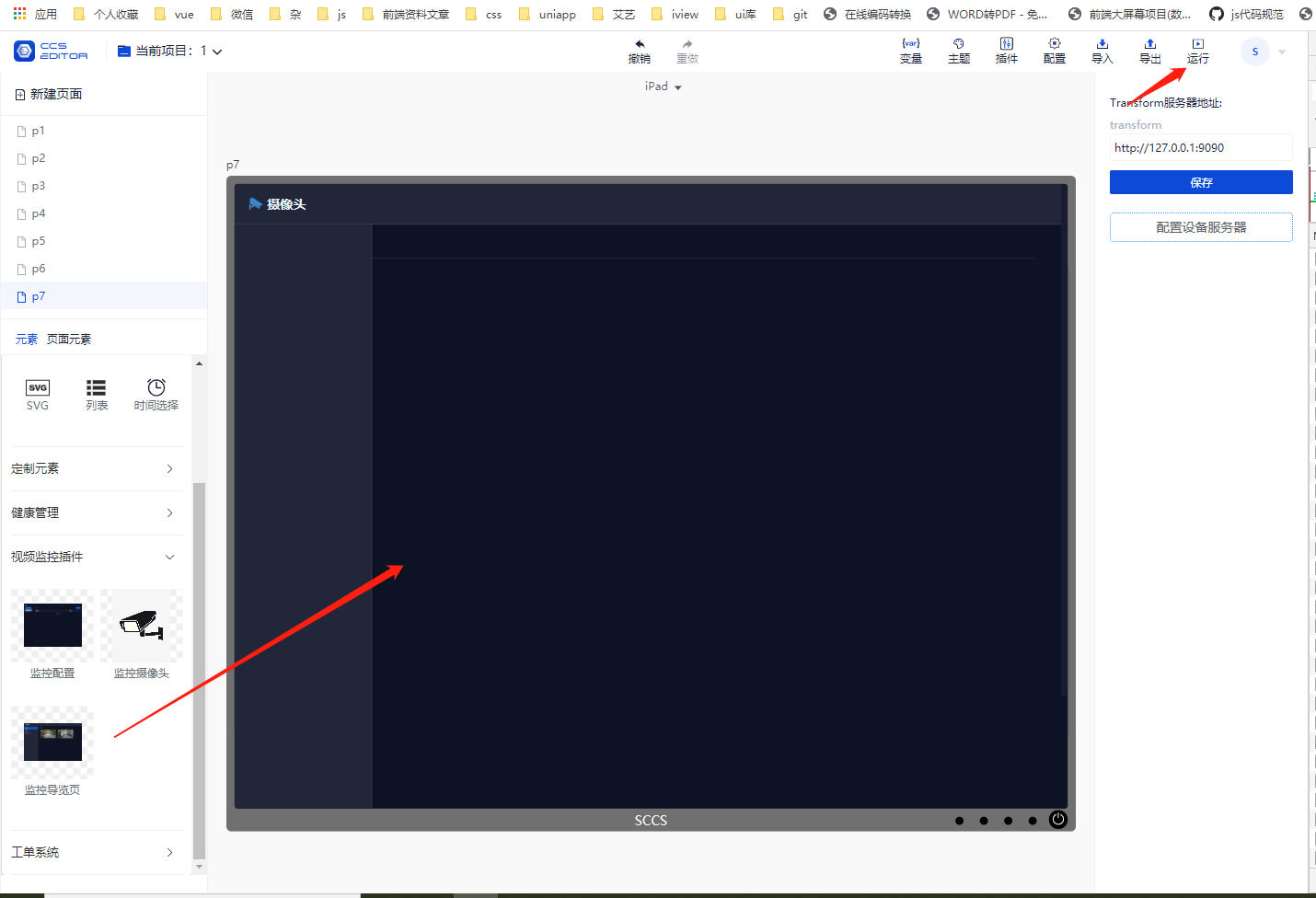

  3. Drag in the Surveillance Navigation Page, click Run to view.

    image-20221110082809626

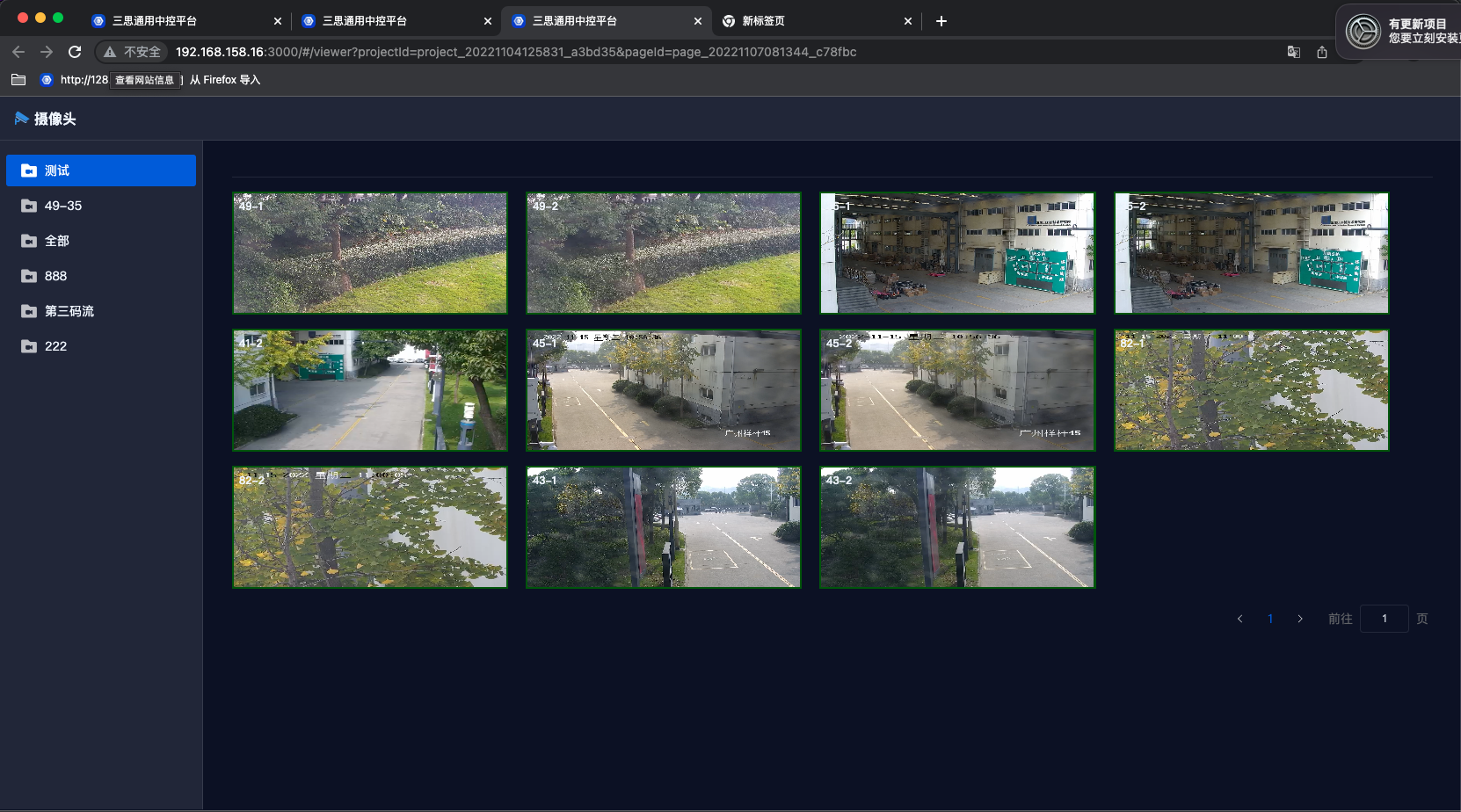

  4. The camera group list on the Control Page is as follows:

    2

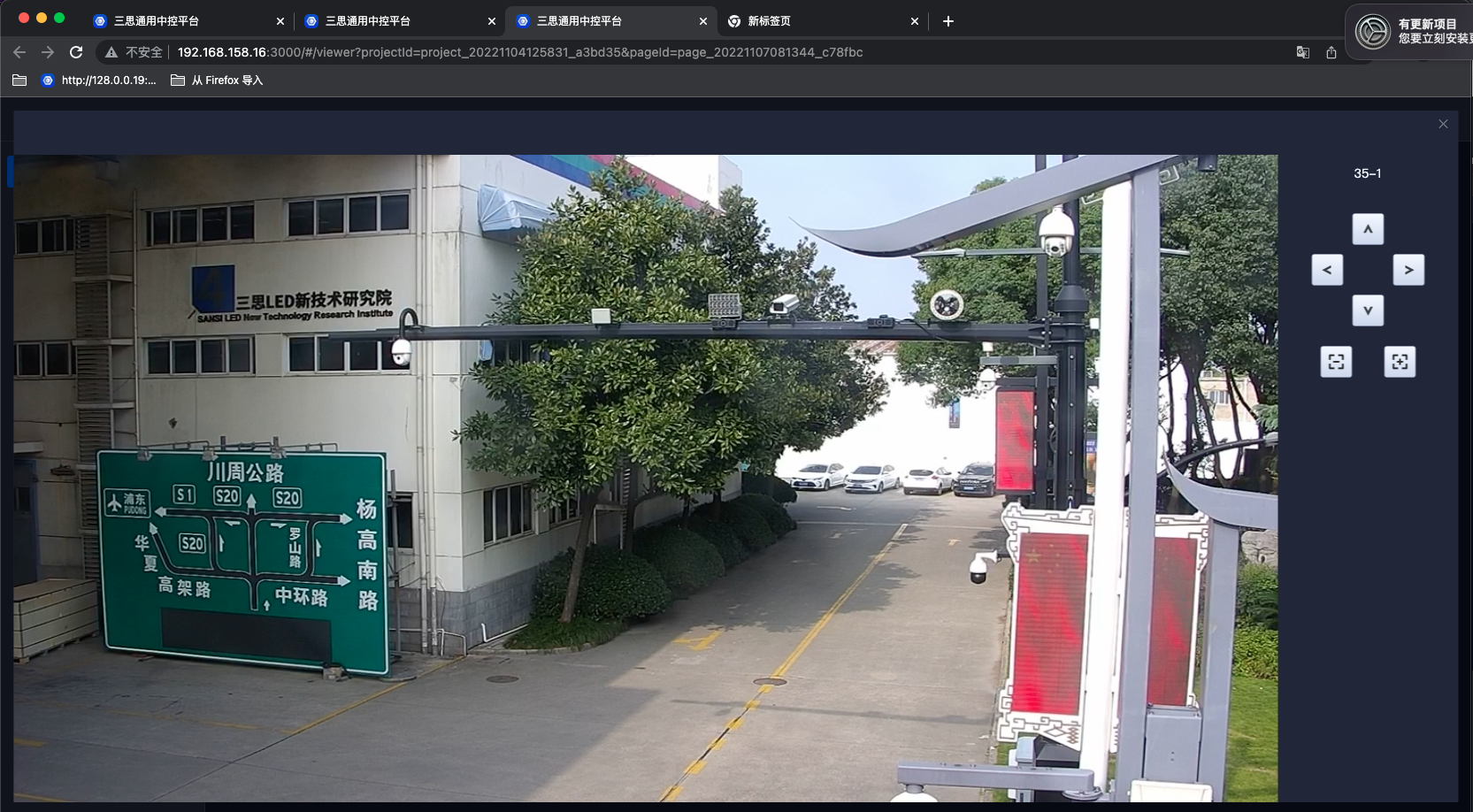

  5. Click on the video in the list to view high-definition video surveillance and PTZ control.

3

←
